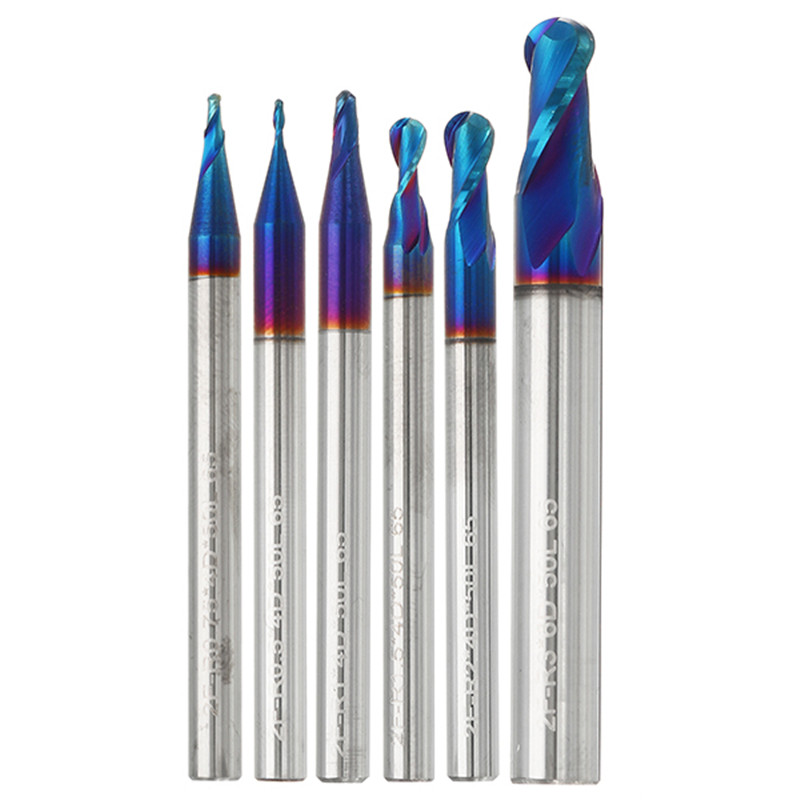

High Precision Tungsten Carbide Ball Nose End Mill 2 Flutes HRC65 R0.5-R3mm Naco Coated

Name: High Precision Tungsten Carbide Ball Nose End Mill 2 Flutes HRC65 R05R3mm Naco Coated
Brand: SUPAL
Price: 1 USD

China High Precision Tungsten Carbide Ball Nose End Mill 2 Flutes HRC65 R0.5-R3mm Naco Coated wholesale

Brand Name : SUPAL

Place of Origin : Changzhou,Jiangsu,China

MOQ : 5PCS

Payment Terms : T/T

Supply Ability : 10000000PCS

Delivery Time : 7-15Days

Packaging Details : 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.

Price : To be negotiated

Product Name : Ball Nose End Mill

Coating : Nano

HRC : 60/65/70

Material : High quality Carbide

Diameter : R0.5-R10

Suitable for : Copper,Cast Iron,Carbon steel,Stainless Steel

Model Number : OEM

Contact Now

High Precision Tungsten Carbide Ball Nose End Mill 2 Flutes HRC65 R0.5-R3mm Naco Coated

Solid Carbide HRC65 Ball Nose 2 Flute End Mills

Product Name	Solid Carbide HRC65 Ball Nose 2 Flute End Mills
Workpiece Material	Titanium Alloy/ High-temperature Alloy/ Hardened Steel
Application	Profile Machining/ Cavity Machining/ Ball Nose Slot Machining
Sample	Yes	Type	Ball Nose
Stock	Yes	Raw Material	GU25UF
OEM/ODM	Yes	Grain of Powder	0.4μm
Tolerance	±0.01	Helix Angle	35°
Flutes	2F	Coating	nACo 3 Blue
HRC	HRC65	Coating Color	Blue

Type	Radius of Nose Head (mm)	Diameter of Head (mm)	Diameter of Shank (mm)	Blade Length (mm)	Total Length (mm)

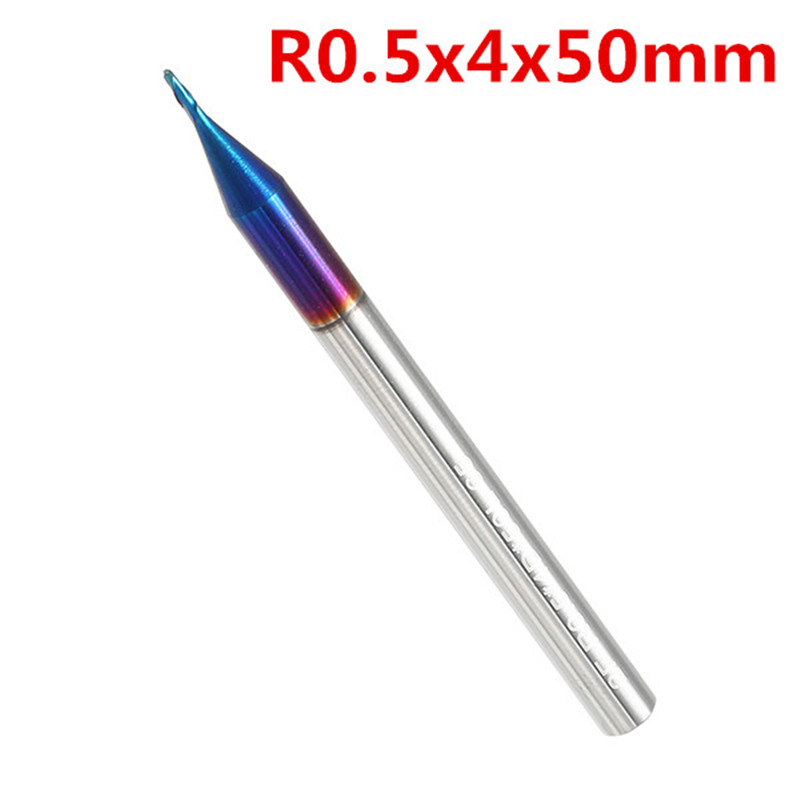

R0.5x4x50mm	0.5	1	4	3	50

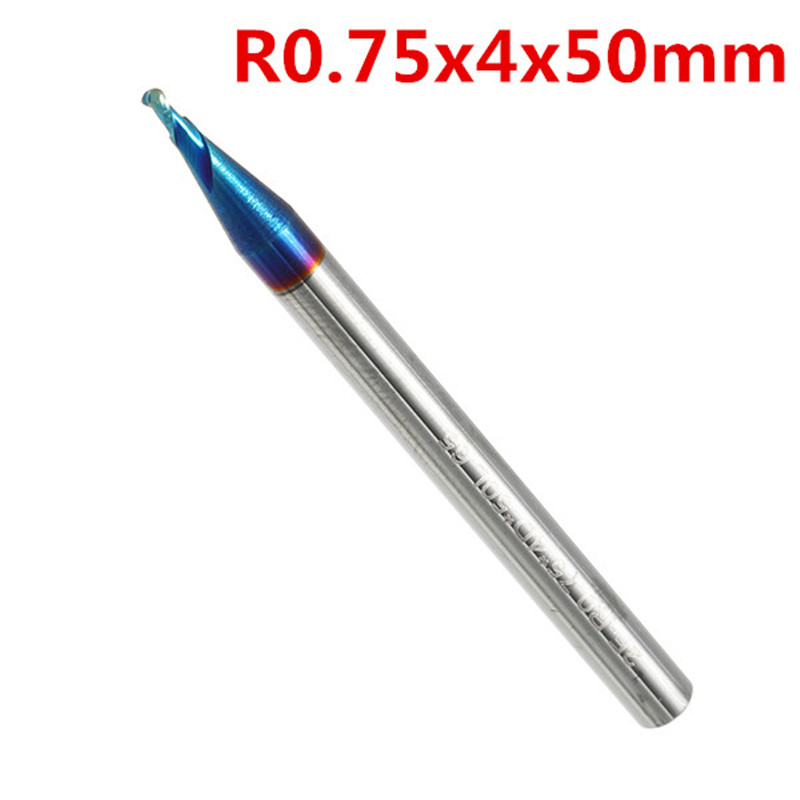

R0.75x4x50mm	0.75	1.5	4	4	50
R1x4x50mm	1	2	4	5	50

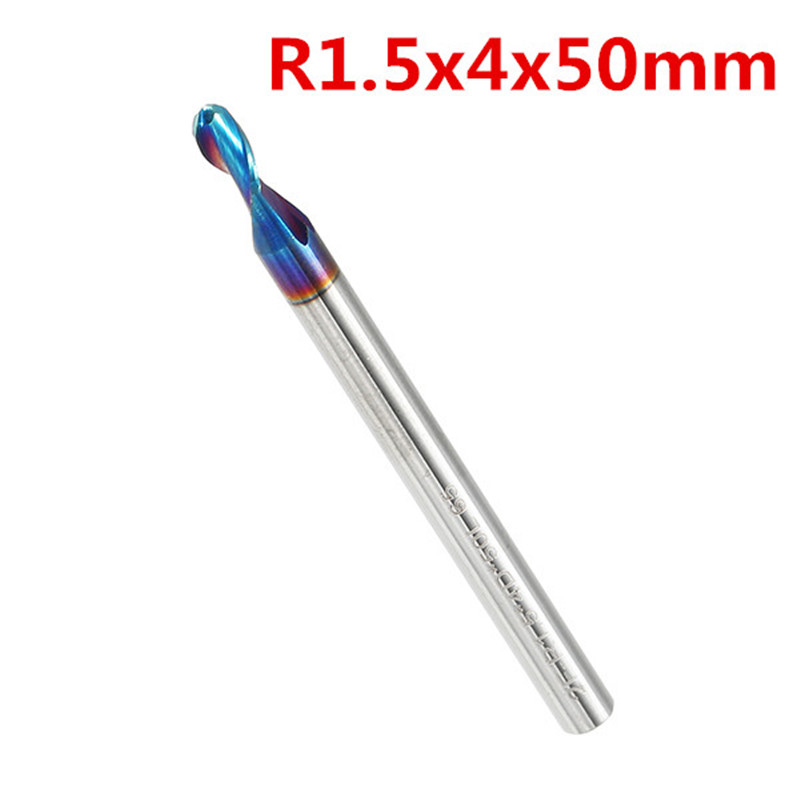

R1.5x4x50mm	1.5	3	4	8	50

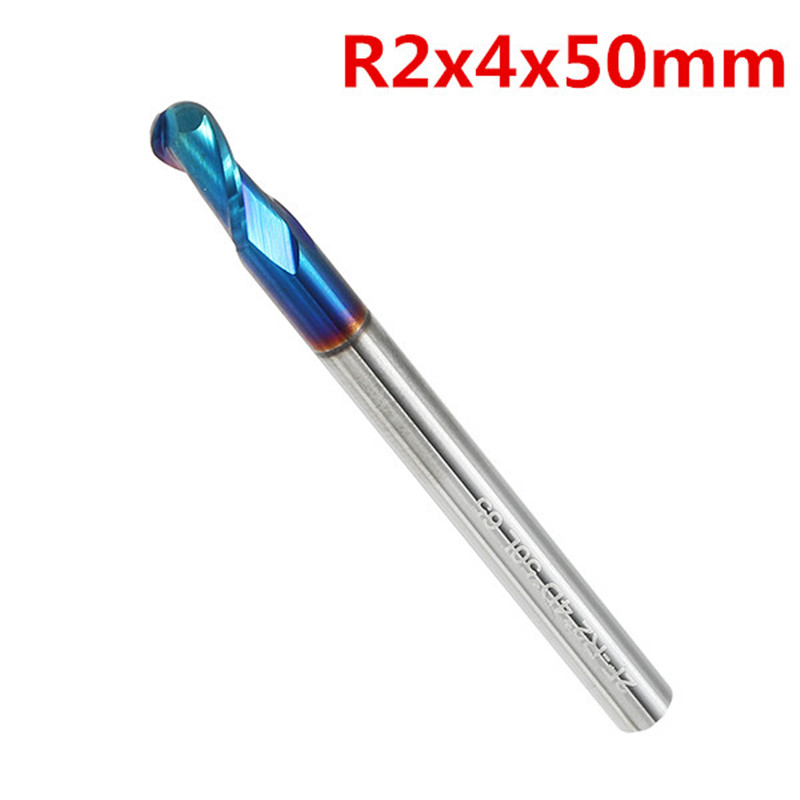

R2x4x50mm	2	4	4	10	50
R3x6x50mm	3	6	6	14	50

Features:

- Durable and practical.

- Highest harness could reach HRC65 for general steel alloy steel mold steel.

- Two flutes design provides small chip loads and quicker removal.

- Round nose design, negative angle design, higher precision.

- Suitable for DIY, Home and General Building / Engineering Using.

High Precision Tungsten Carbide Ball Nose End Mill 2 Flutes HRC65 R0.5-R3mm Naco Coated
