Long Neck Carbide End Mill Tungsten Carbide Short Flute Deep Groove Ball Nose End Mill Cutter

Name: Long Neck Carbide End Mill Tungsten Carbide Short Flute Deep Groove Ball Nose End Mill Cutter
Brand: SUPAL
Price: 1 USD

China Long Neck Carbide End Mill Tungsten Carbide Short Flute Deep Groove Ball Nose End Mill Cutter wholesale

Brand Name : SUPAL

Place of Origin : Changzhou,Jiangsu,China

MOQ : 5PCS

Payment Terms : T/T

Supply Ability : 10000000PCS

Delivery Time : 7-15Days

Packaging Details : 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.

Series : Long Neck Series

Diameter : 0.1-10mm

Overall Length : 50-200

Coating : AlTiN

Usage : CNC

HRC : 45/55/60/65 Degree

Price : To be negotiated

Model Number : OEM

Contact Now

Long Neck Carbide End Mill Tungsten Carbide Short Flute Deep Groove Ball Nose End Mill Cutter

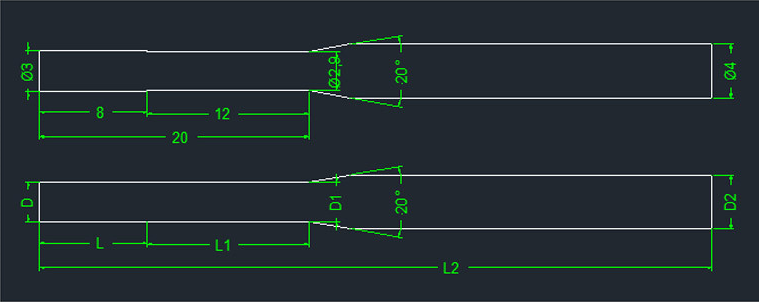

We can make this kind of long shank end mill,there is a table,it shows that we can make end mills based on this format.

55 HCR OF LONG NECK END MILL

In this table,you can choose the real size we can make for you but you need to tell us what kind of end mill are you looking!We could make long neck of suqare end mill(2/4 flutes),ball end mill.So please tell us correctly.
D (mm)	L (mm)	D1 (mm)	L1 (mm)	D2 (mm)	L2 (mm)	Flute
1	2	0.9	2	4	50	2
1	3	0.9	2	4	50	2
1	3	0.9	4	4	50	2
1	3	0.9	5	4	50	2
1	3	0.9	7	4	50	2
1.5	4	1.4	2	4	50	2
1.5	4	1.4	4	4	50	2
1.5	4	1.4	6	4	50	2
1.5	4	1.4	8	4	50	2
1.5	4	1.4	11	4	50	2
2	5	1.9	3	4	50	2
2	5	1.9	5	4	50	2
2	5	1.9	7	4	50	2
2	5	1.9	10	4	50	2
2	5	1.9	15	4	50	2
2.5	6	2.4	2	4	50	2
2.5	6	2.4	4	4	50	2
2.5	6	2.4	6	4	50	2
2.5	6	2.4	9	4	50	2
2.5	6	2.4	14	4	50	2
2.5	6	2.4	19	4	50	2
3	8	2.9	2	4	50	2
3	8	2.9	4	4	50	2
3	8	2.9	7	4	50	2
3	8	2.9	12	4	50	2
3	8	2.9	17	4	50	2
3	8	2.9	22	4	50	2
3.5	9	3.4	3	4	50	2
3.5	9	3.4	6	4	50	2
3.5	9	3.4	11	4	50	2
3.5	9	3.4	16	4	50	2
3.5	9	3.4	24	4	50	2

Long Neck Carbide End Mill Tungsten Carbide Short Flute Deep Groove Ball Nose End Mill Cutter
