Product parameters

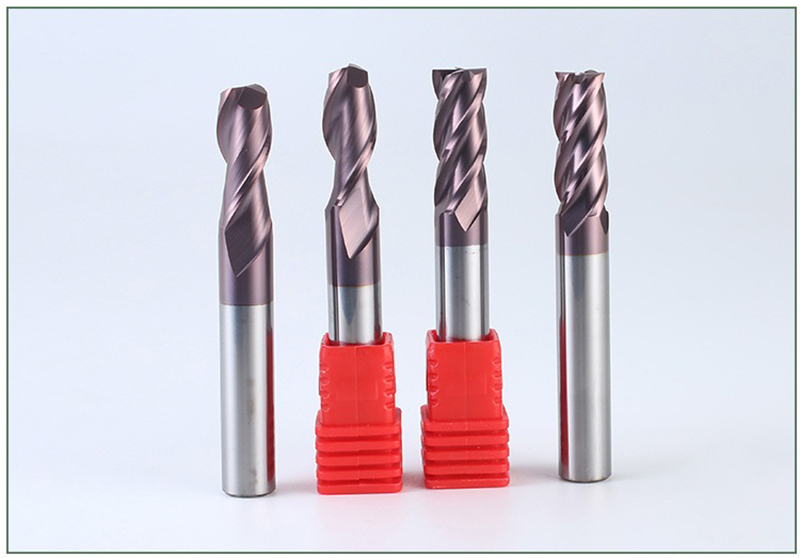

Name: First generation tungsten steel milling cutter
Product model: Multiple models Coating: TIALN
Blade number: 4 Flute HRC: 55°
Applicable machine tools: CNC machining center, engraving machine, high-speed machine, etc.
Materials used: mould steel, tool steel, l, carbon steel, Thermal treatment quenching, etc
Main features: Germany Walter five-axis grinding machine, large core diameter design, chip removal smooth, enhance tool rigidity, easy angle; use fine grain grinding wheel processing, reduce surface grinding wheel trace, coating treatment more uniform, longer service life.

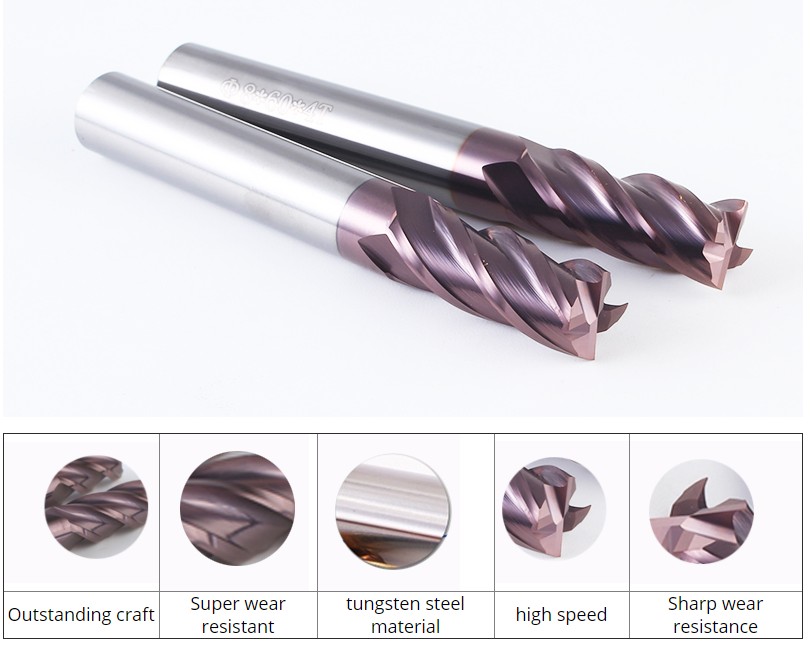

The first generation of tungsten steel milling cutters are super wear-resistant and durable.

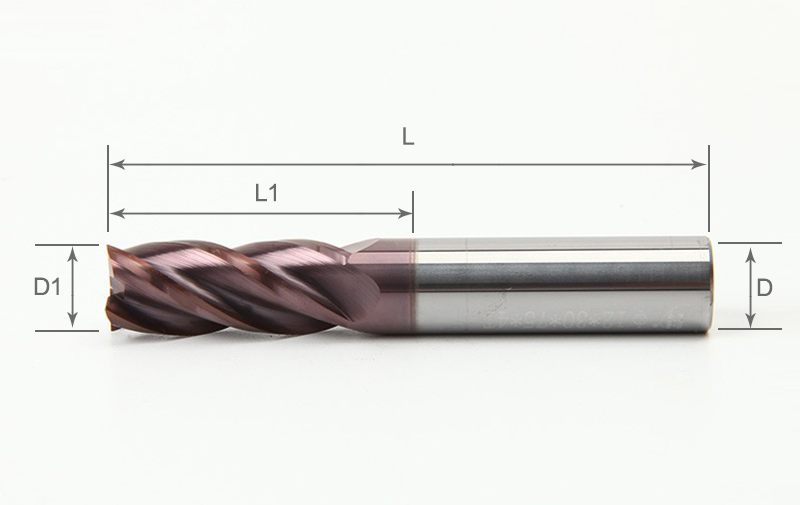

| Number | Model | Blade diameter
D1 | Shank diameter
D | Blade number
T | Flute length
L1 | Total length
L |
| 1 | 1x4Dx4Tx50L | 1 | 4 | 4 | 3 | 50 |
| 2 | 1.5x4Dx4Tx50L | 1.5 | 4 | 4 | 4 | 50 |
| 3 | 2.0x4Dx4Tx50L | 2 | 4 | 4 | 6 | 50 |
| 4 | 2.5x4Dx4Tx50L | 2.5 | 4 | 4 | 8 | 50 |
| 5 | 3.0x4Dx4Tx50L | 3 | 4 | 4 | 8 | 50 |
| 6 | 4.0x4Dx4Tx50L | 4 | 4 | 4 | 10 | 50 |
| 7 | 5.0x6Dx4Tx50L | 5 | 6 | 4 | 13 | 50 |
| 8 | 6.0x6Dx4Tx50L | 6 | 6 | 4 | 15 | 50 |
| 9 | 8.0x8Dx4Tx60L | 8 | 8 | 4 | 20 | 60 |
| 10 | 10.0x10Dx4Tx75L | 10 | 10 | 4 | 25 | 75 |
| 11 | 12.0x12Dx4Tx75L | 12 | 12 | 4 | 30 | 75 |

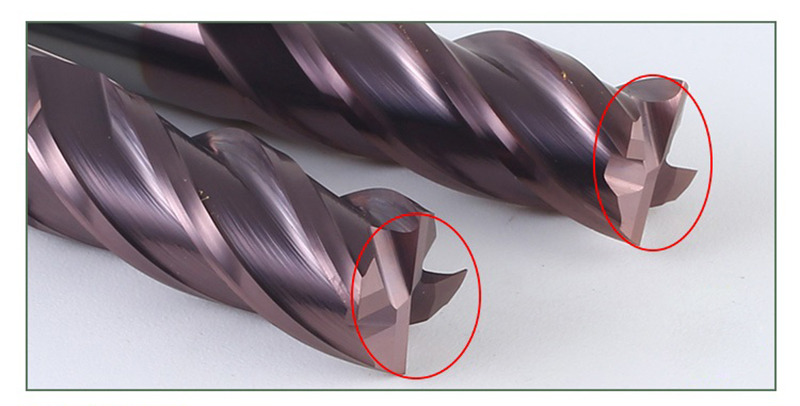

1.Double edge belt design
Double-edged belt upgrade design, better wear resistance than ordinary double-edged belt, improve product life and reduce product burrs

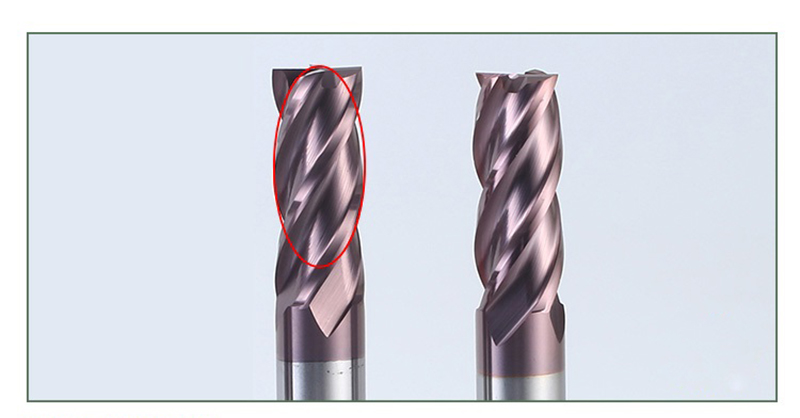

2. Blade design
The spiral meter adopts the double tool and the design of the large chip-discharge groove greatly improves the fluency of the chip removal and makes the workpiece more glossy and beautiful.
3. TIAIN Coating
The blade Tiain coating design improves the tool's high thermal stability, hardness and reduces the broken milling cutters
4. Imported tungsten steel bar
Selected imported ultra-fine ultra-fine particles and high hardness tungsten steel bars to ensure the performance of each Milling cutter
